Gomelong is a professional manufactures of Single phase DLMS electricity energy meter. Our professional expertise in manufacturing Single phase DLMS electricity energy meter has been honed over the past 10+ years. Single phase DLMS electricity energy meter can display Voltage,Current,15 minutes MD,total consumptionThe materials of single phase DLMS electricity energy meter base is ABS.The cover and the exterminal cover is PC.Meter constant:230V,10(60)A,50Hz,1600imp/kWh
Product Brief Introduction of Single Phase DLMS Electricity Energy Meter
Single Phase DLMS Electricity Energy Meter adopts exclusive use LSI,the device typifying new periphery component, simple structure, high reliability, low power consumption, long life etc.Single Phase DLMS Electricity Energy Meter is suitable for the single-phase AC active electric energy with rated frequency of 50Hz .The performance is in conformity with the technical requirements for Single-phase Electronic Watt-hour Meter stipulated in GB/T 17215 321-2008 Class I and 2 Static AC Active Watt-hour Meter standard.
Function And Feature of Single Phase DLMS Electricity Energy Meter
Measure active electric energy,no need calibrate for long-term operation;
Adopt the special chip of measurement ADE7755;
Adopt the latest oversea electric energy special integration circuit,greatly improved dynamic working range of Meter;to make the ability of actual overload up to over 10 times;
Have hood mistake linearity in the range of5%lb-Imax;
Few periphery components,simple structure,low power consumption;
Adopt high reliability and long life electronic components,so the Meter assume feature of high reliability and long life;
Main Technical Data of Single Phase DLMS Electricity Energy Meter
|
Rated Current(A) |
1.5(6),2.5(10),5(20),10(40),15(60),20(80),30(100) |
|
Rated Voltage(V) |
220 or 240 |
|
Rated Frequency(HZ) |
50 or 60 |
|
Accuracy Class |
1 or 2 |
Special of Single Phase DLMS Electricity Energy Meter:
1.Can display Voltage.Current,15 minutes MD.Total consumption
2.Reverse direction.power.pluse
3.power off record(with battery)
4.The materials of meter base is ABS.The meter cover and the exterminal cover is PC
5.Meter constant:230V,10(60)A,50Hz,1600imp/kWh
6.Expansible RS485

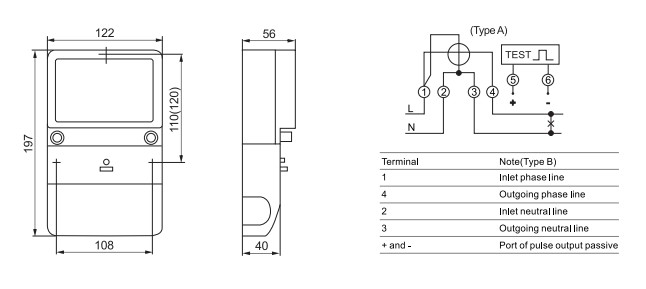

Dimension And Wiring Diagram of Single Phase DLMS Electricity Energy Meter
