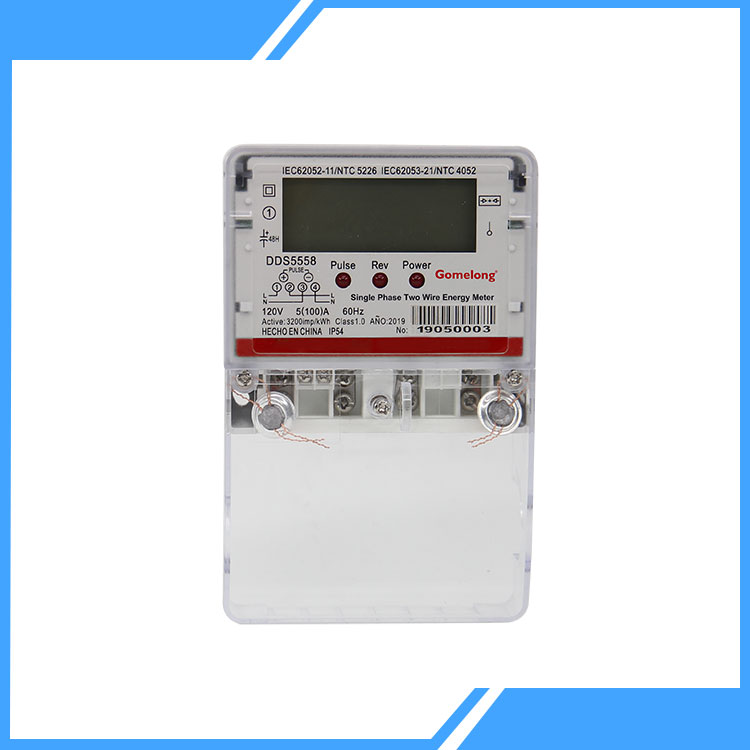

Gomelong is a professional manufactures of Single Phase Energy Meter. Our professional expertise in manufacturing Single Phase Energy Meter has been honed over the past 10+ years. Single Phase Energy Meter With 48hours Super Capacitor is a kind of new style single phase two wire active energy meter, adopts micro-electronics technique, and imported large scale integrate circuit, uses advanced technique of digital and SMT techniques, etc. Customize single phase energy meter with optical completely accords with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC62053-21.
Application of Single Phase Energy Meter With 48hours Super Capacitor
Customize single phase energy meter with optical is a kind of new style single phase two wire active energy meter, adopts micro-electronics technique, and imported large scale integrate circuit, uses advanced technique of digital and SMT techniques, etc. Customize single phase energy meter with optical completely accords with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC62053-21.
Features of Single Phase Energy Meter With 48hours Super Capacitor
1. Bidirectional measurement, Reverse energy calculated into forward
2. Indication: Pulse, power, reverse current
3.Full PC
Technical Parameters of Single Phase Energy Meter With 48hours Super Capacitor
|
Specification |
DDS5558 |
|
|
Accuracy |
Active |
Class1.0 |
|
Reactive |
|
|
|
Voltage |
Rated |
110/120/220/230/240V |
|
Range |
0.9Un~1.1Un |
|
|
Limit |
0.8Un~1.2Un |
|
|
Frequency |
|
50/60Hz |
|
Current |
Range |
5(20)A ,5(25)A ,5(30)A,5(32)A |
|
Starting Current |
|
0.4%Ib |
|
Constant |
Active |
2000imp/kWh |
|
Reactive |
\ |
|
|
Display |
Type |
LCD |
|
Digit |
6+1 |
|
|
Power Consumption |
Voltage Circuit |
≤0.8W,10VA |
|
Current Circuit |
≤4VA |
|
|
Communication |
Interface |
\ |
|
Protocol |
|
|
|
Temperature |
Working Temperature |
-45℃~+55℃ |
|
Storage Temperature |
-40℃~+70℃ |
|
|
Humidity |
|
≤90% |
|
Protection |
|
IP54 |
Dimension And Wiring Digram of Single Phase Energy Meter With 48hours Super Capacitor
We have launched a new model 2018, Type DDS5558-H we call it H type , means "High Quality" and " Hot Selling" . It's a single Phase digital smart design model. Already we have shipped to Colombia, Peru, Vietnam, Cambodia and Bangladesh. Market response very good. Also samples and orders to Chile, Afghanistan are under processing. Customers and end users like the new design very much and we are spreading this model to many other countries.
Technical features:
Voltage: 120V, 127V, 220V, 230V, 240V, 120/240V
Amp: 3(60)A, 5(60)A, 10(50)A, 10(60)A, 5(80)A, 5(100)A, 10(100)A,
Display: LCD 6+2
Following Standarded: IEC62052-11, IEC62053-21
Functions for option:
Silver Function: basic kWh, Reverse energy
Gold Function: kWh, MD, V, A, PF, Backlight ,battery backup/super capacitor , tamper proof,Neutral/Phase missing.
Diamond Function: kWh, MD, V, A, PF, backlight,battery backup, Neutral/Phase missing. Tariff, Optical/RS485.
All the meters has 3years warranty.
If you need more information about this model or our other products, please feel free to contact with us.
