STS Split Din Rail Energy Meter

STS Split din rail energy meter operating with STS standard encryption algorithm. STS Split din rail energy meter is available with option for SMPS sustaining power supply, enabling the meter to work with stable performance even in brownouts, making it a sound revenue controller suitable for constantly unstable grid.

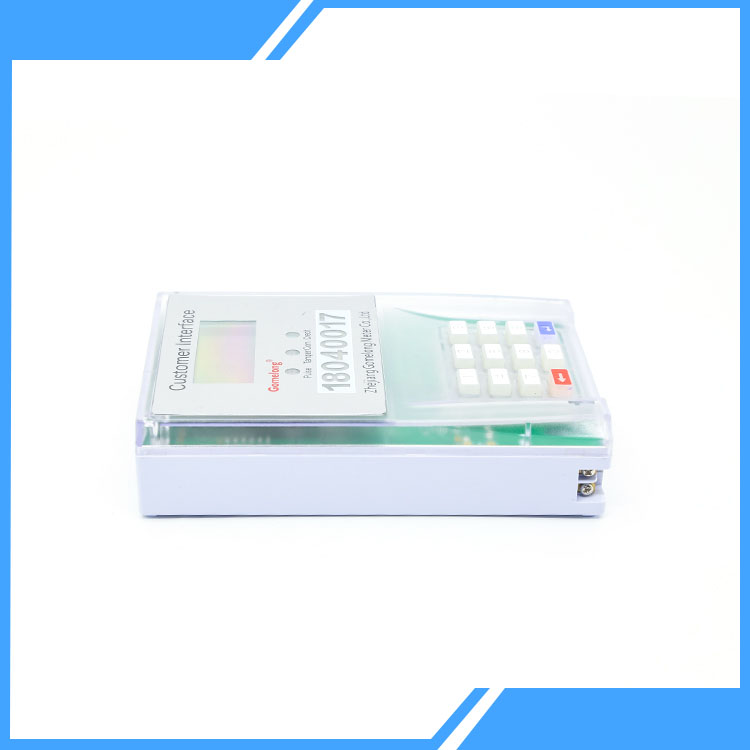

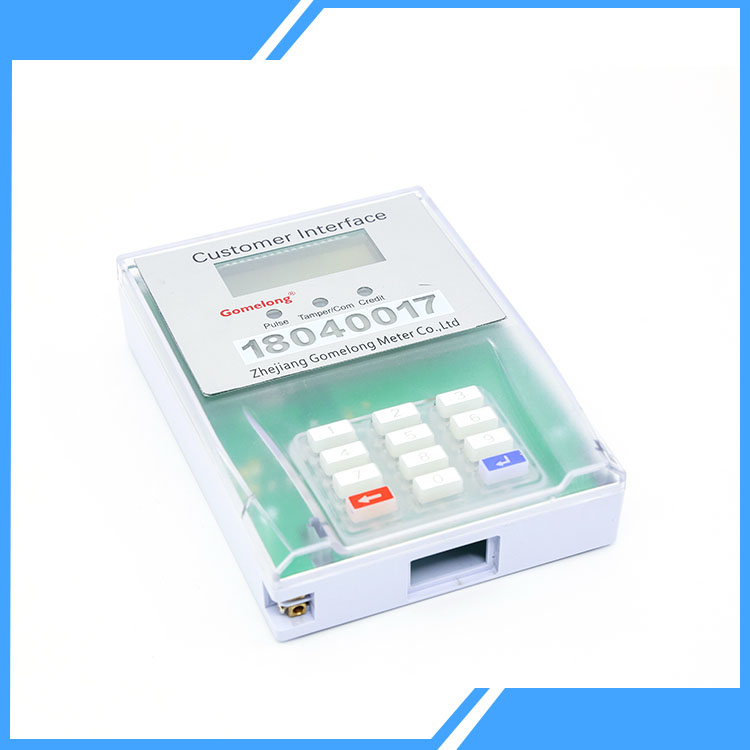

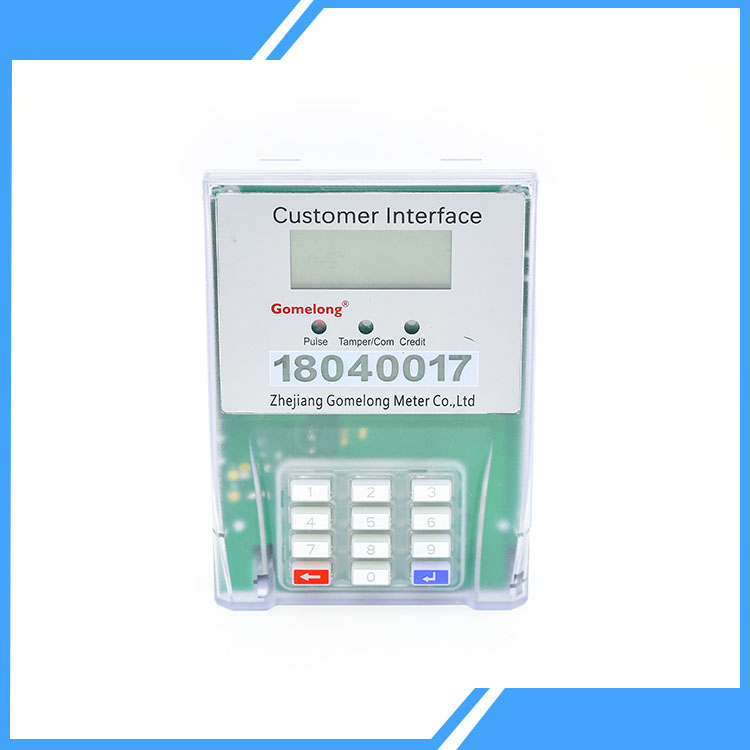

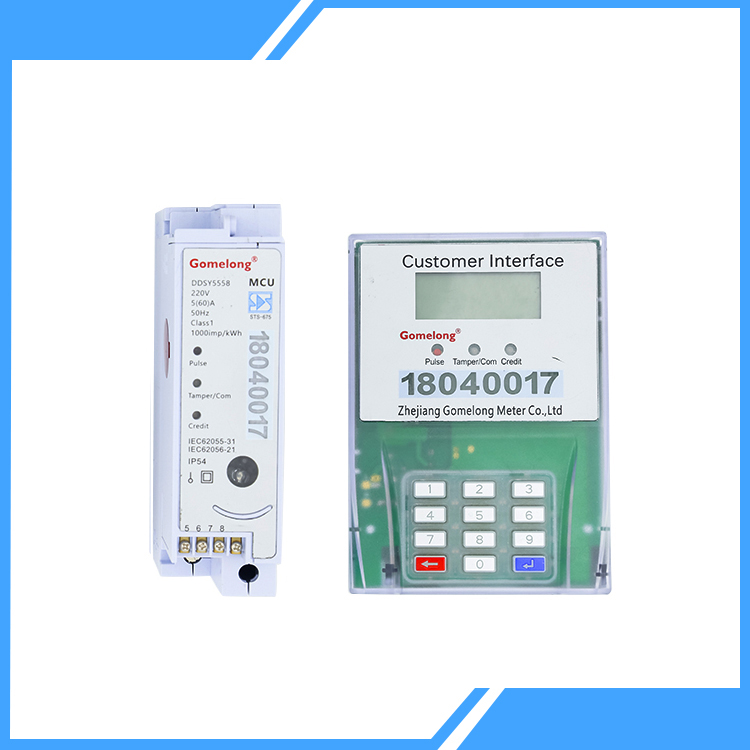

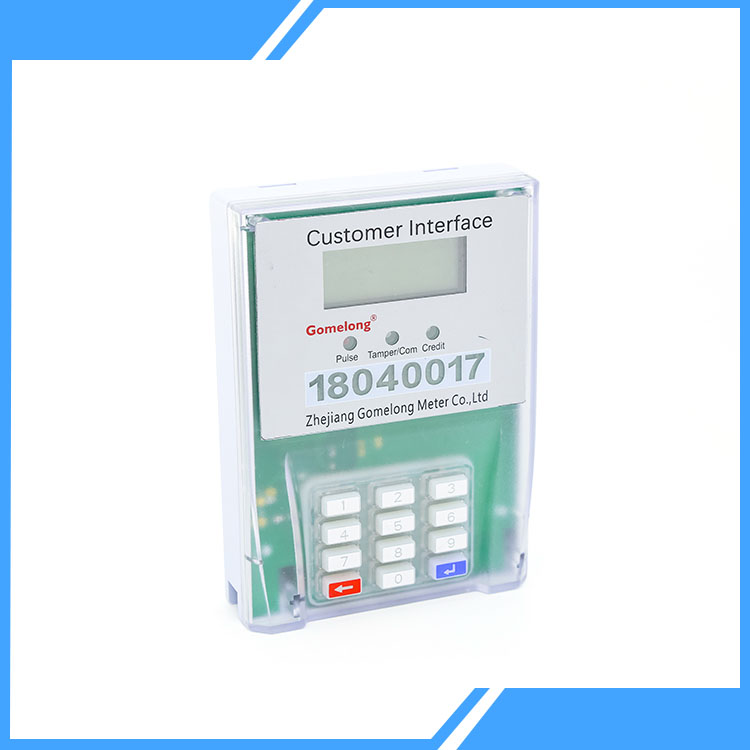

STS Split din rail energy meter operates in two parts: MCU, Metering Control Unit, and CIU, Customer Interface Unit. The CIU is a tactile and audible keypad with LCD display, normally installed under consumer's roof. The MCU, or the main meter is usually installed in a secure, locked enclosure-typically a pavement kiosk or pole-mounted equivalent. It is outside the consumer's premises to faciliate easy inspection by the utility at any time, thus reducing the possibility of tampering.


Thanks to the slim-line size and DIN rail housing, mutiple Power-Rail meters can be mounted in a small enclosure thereby making installation cost effective. It is ideal for installation in Granny Flats, Individual Rented Unit, Shops, Stores and sporting Facilities.


STS Split din rail energy meter connection between the meter and CIU is via a pair of communications wires. The MCU contains all critical metering, encryption, decryption and load control functionality. It operates independently of the customer interface unit and is immune to any form of tampering on the customer interface.

Features of STS Split Din Rail Energy Meter

1. 20 digit STS (Standard Transfer Specification) encryption

2. Slim-line and space-economy design

3. Progarmmable power limit

4. Progarmable operating mode-Budget mode, prepayment or credit mode.

5. Progarmable monthly allocation of energy

User Benefits of STS Split Din Rail Energy Meter

* Meter is durable and operable for harsh and severe environment

* Easy and quick to install

* Disconnect on preset credit level and tamper

* Slim-line design to reduce operational cost
