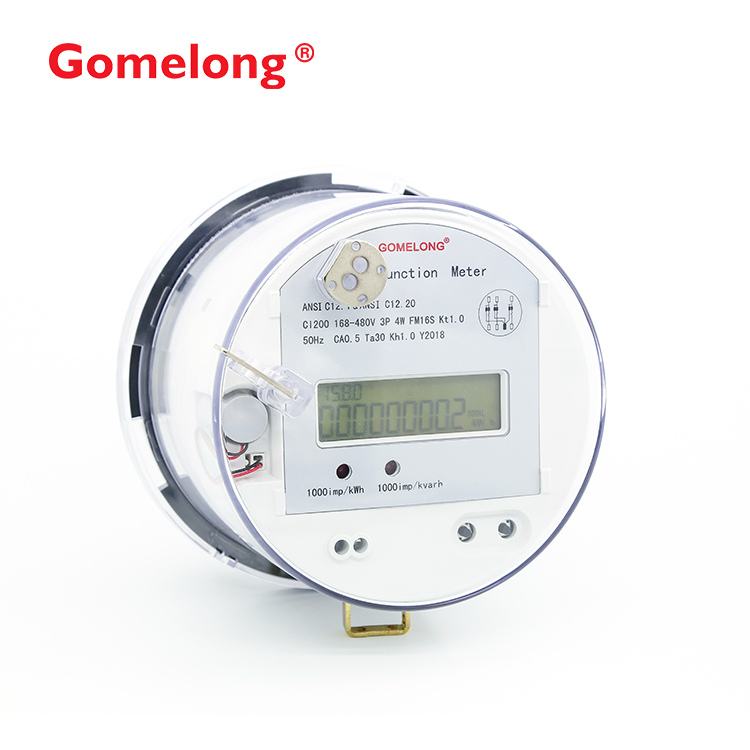

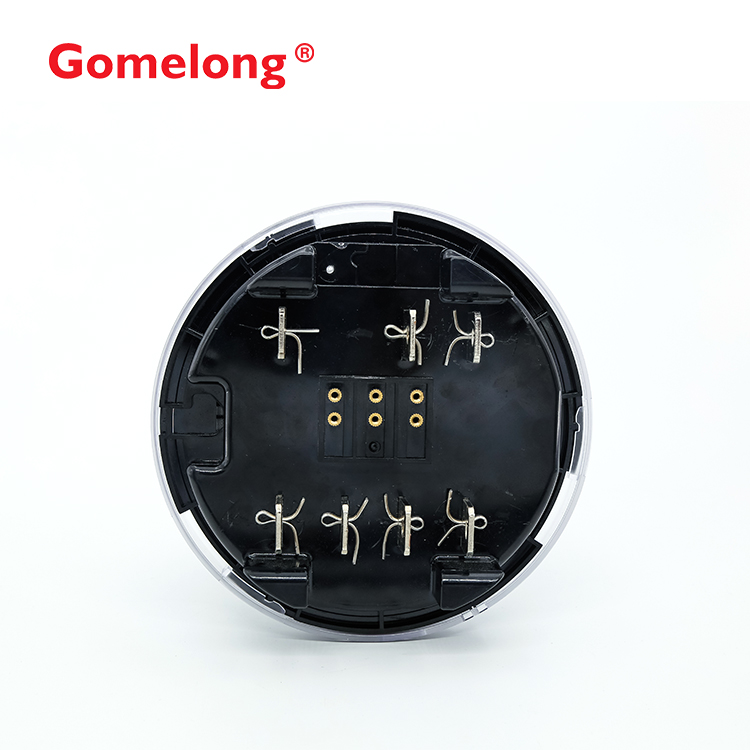

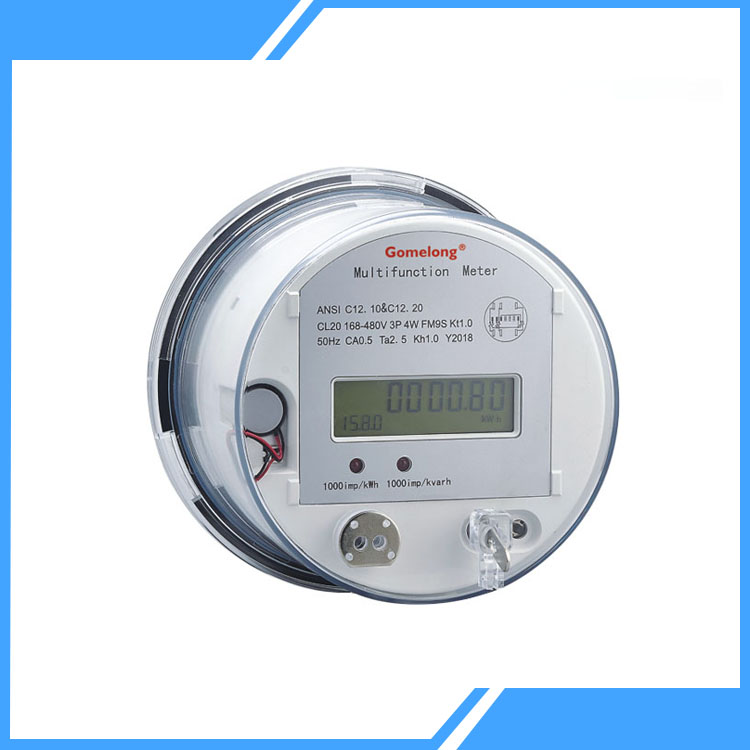

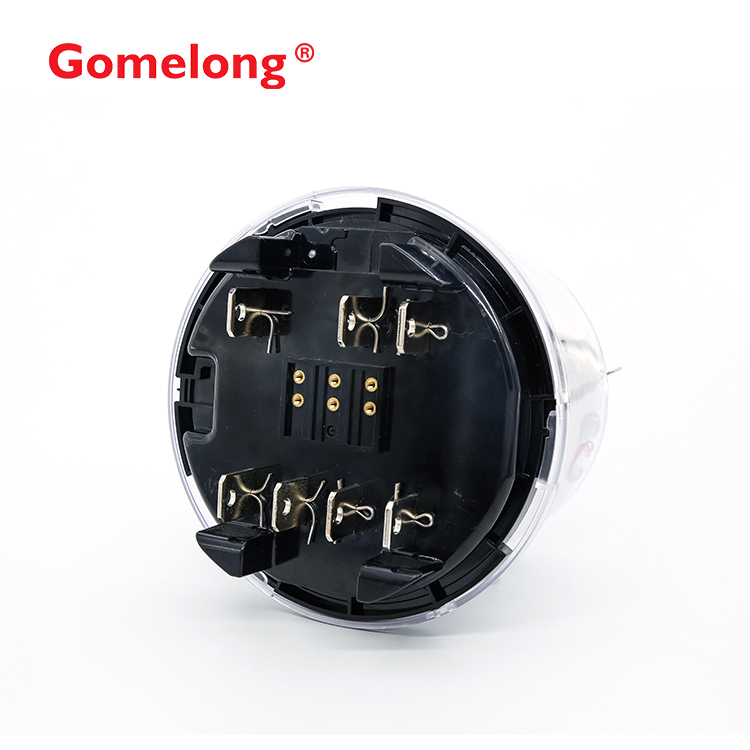

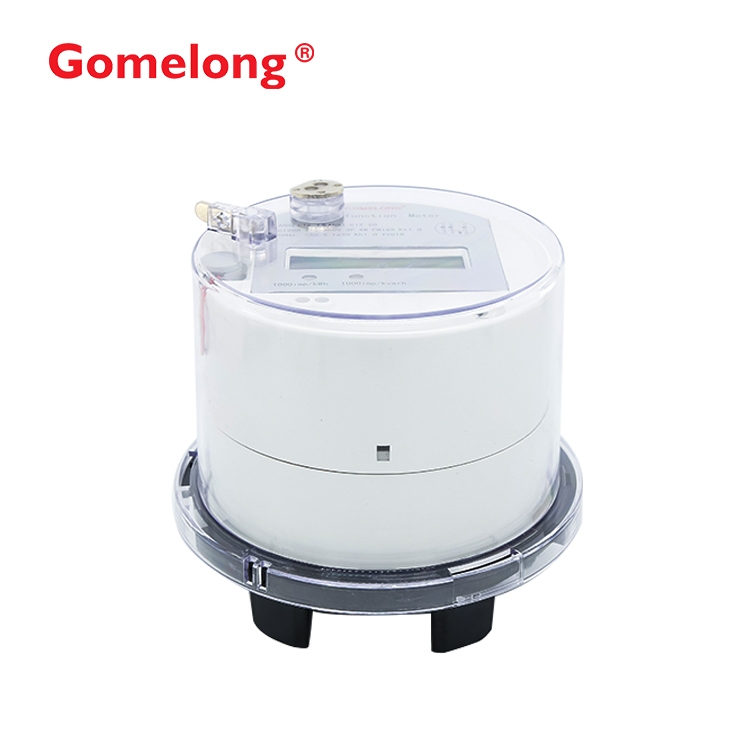

Gomelong is a professional manufactures of Three phase round electrical meter. Our professional expertise in manufacturing Three phase round electrical meter has been honed over the past 10+ years. Three phase round electrical meter socket basecould proceed basic set and test for meter by infrared communication,and through RS485 communication. Three phase round electrical meter socket base could proceed remote control for meter ,including read all meter data and set meter.

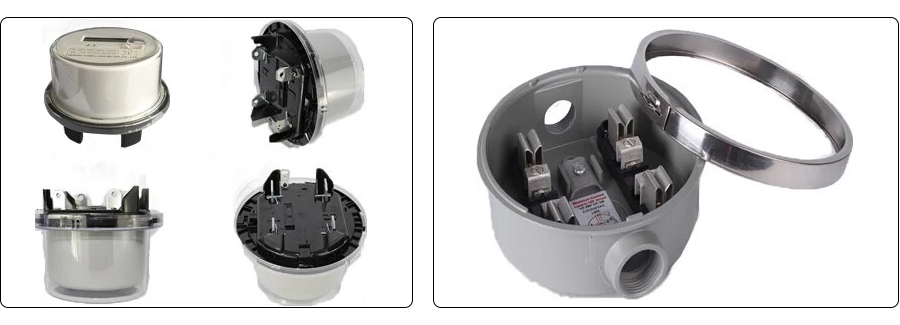

Three phase round electrical meter socket base ,outdoor application,intended for residential customers.Three phase round electrical meter socket basecould proceed basic set and test for meter by infrared communication,and through RS485 communication. Three phase round electrical meter socket base could proceed remote control for meter ,including read all meter data and set meter.
Features of Three Phase Round Electrical Meter Socket Base
- Kwh/MD/V/A display, Back-up battery
- Comply with ANSI C12.1/ ANSI C12.10/ANSI C12.18/ ANSI C12.19/ ANSI C12.20
- Maximum demand measurement and resetting
- Bidirectional measurement, Reverse energy calculated into forward
- Current flow direction indication
- LCD rotor simulation disk
Technical Parameters of Three Phase Round Electrical Meter Socket Base
|
Specification |
DDS5558/12S |
DDS5558/16S |
|
|
Accuracy |
Active |
CA0.5 |
Class0.5/Class1.0 |
|
Reactive |
CA1.0 |
Class1.0 |
|
|
Voltage |
Rated |
120/208V |
120/240V |
|
Range |
0.9Un~1.1Un |
0.9Un~1.1Un |
|
|
Limit |
0.8Un~1.2Un |
0.8Un~1.2Un |
|
|
Frequency |
|
50/60Hz |
50/60Hz |
|
Current |
Range |
CL100,CL200 |
CL100,CL200 |
|
Starting Current |
|
0.4%Ib |
0.4%Ib |
|
Constant |
Active |
Kh0.5/Kh1.0/Kh/1.6/Kh2.0 |
Kh0.5/Kh1.0/Kh/1.6/Kh2.0 |
|
Form |
|
12S |
16S |
|
Display |
Type |
LCD |
LCD |
|
Digit |
5+0/5+1/6+1 |
5+0/5+1/6+1 |
|
|
Power Consumption |
Voltage Circuit |
≤1.5W |
≤1.5W |
|
Current Circuit |
≤2VA |
≤2VA |
|
|
Communication |
Interface |
Optical/Infrared/RS485 (Optional) |
Optical/Infrared/RS485 (Optional) |
|
Protocol |
MODBUS,DLT/645,IEC1107 |
MODBUS,DLT/645,IEC1107 |
|
|
Temperature |
Working Temperature |
-25℃~+55℃ |
-25℃~+55℃ |
|
Storage Temperature |
-40℃~+70℃ |
-40℃~+70℃ |
|
|
Humidity |
|
≤95% |
≤95% |
Packaging Details of Three Phase Round Electrical Meter Socket Base:Standard Carton
During transportation and unpacking, three phase round electrical meter socket base shall avoid strong vibration. Keep the original packaging for storage. Do not pile up more than 8 levels. The storing place shall be clean, with 0-55 ℃ambient temperature and humidity shall not exceed 85%. There shall be no erosive substance in the air.
