Gomelong is a professional manufactures of single phase energy meter. Our professional expertise in manufacturing single phase energy meter has been honed over the past 10+ years. Customize single phase energy meter with optical adopts micro-electronics technique, and imported large scale integrate circuit, uses advanced technique of digital and SMT techniques, etc. Customize single phase energy meter with optical completely accords with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC62053-21.
Application of Customize Single Phase Energy Meter With Optical
Customize single phase energy meter with optical is a kind of new style single phase two wire active energy meter, adopts micro-electronics technique, and imported large scale integrate circuit, uses advanced technique of digital and SMT techniques, etc. Customize single phase energy meter with optical completely accords with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC62053-21.

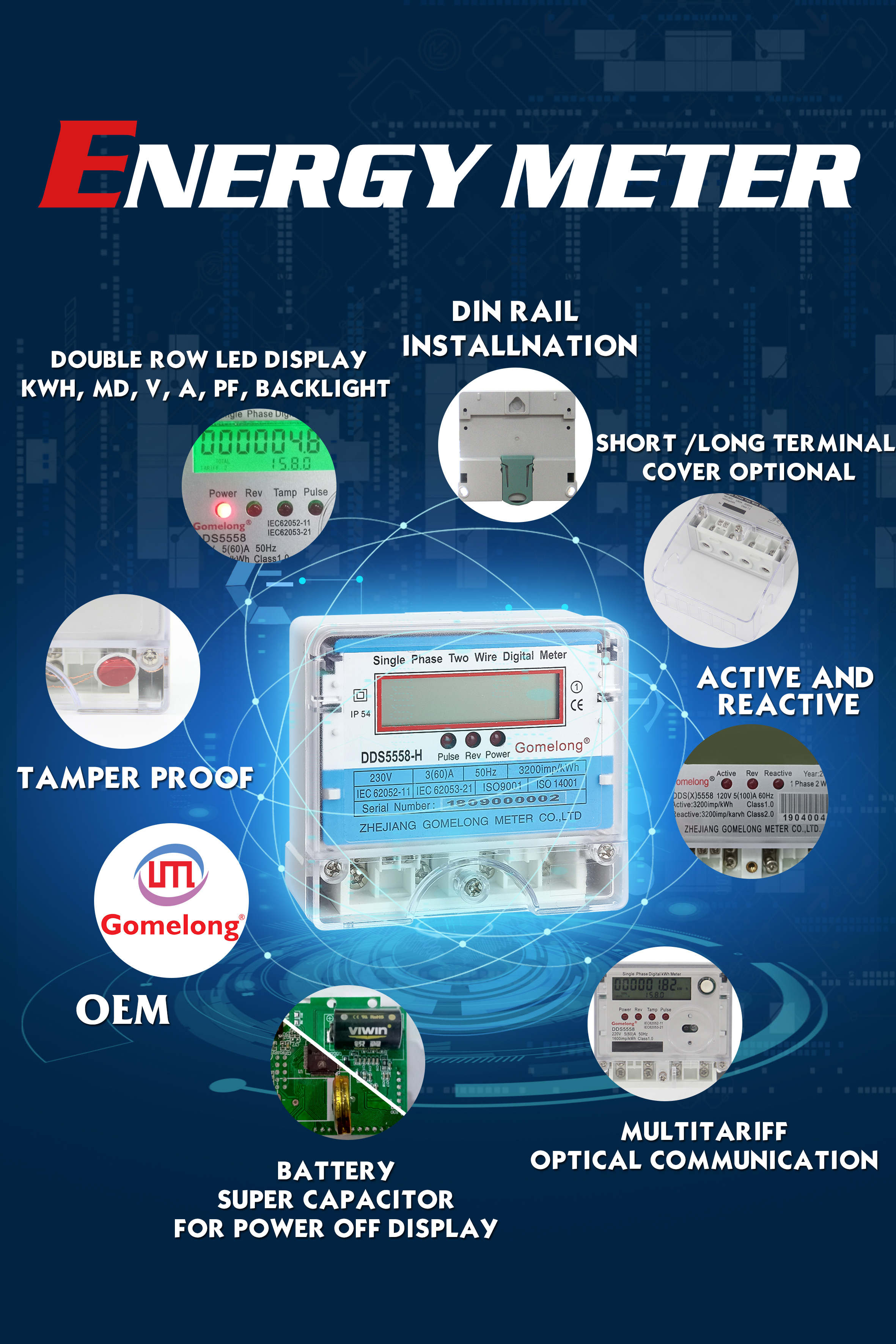

Features of Customize Single Phase Energy Meter With Optical
1. Bidirectional measurement, Reverse energy calculated into forward
2. Indication: Pulse, power, reverse current
3.Full PC
Technical Parameters of Customize Single Phase Energy Meter With Optical
|
Specification |
DDS5558 |
|
|
Accuracy |
Active |
Class1.0 |
|
Reactive |
|
|
|
Voltage |
Rated |
110/120/220/230/240V |
|
Range |
0.9Un~1.1Un |
|
|
Limit |
0.8Un~1.2Un |
|
|
Frequency |
|
50/60Hz |
|
Current |
Range |
5(20)A ,5(25)A ,5(30)A,5(32)A |
|
Starting Current |
|
0.4%Ib |
|
Constant |
Active |
2000imp/kWh |
|
Reactive |
\ |
|
|
Display |
Type |
LCD |
|
Digit |
6+1 |
|
|
Power Consumption |
Voltage Circuit |
≤0.8W,10VA |
|
Current Circuit |
≤4VA |
|
|
Communication |
Interface |
\ |
|
Protocol |
|
|
|
Temperature |
Working Temperature |
-45℃~+55℃ |
|
Storage Temperature |
-40℃~+70℃ |
|
|
Humidity |
|
≤90% |
|
Protection |
|
IP54 |

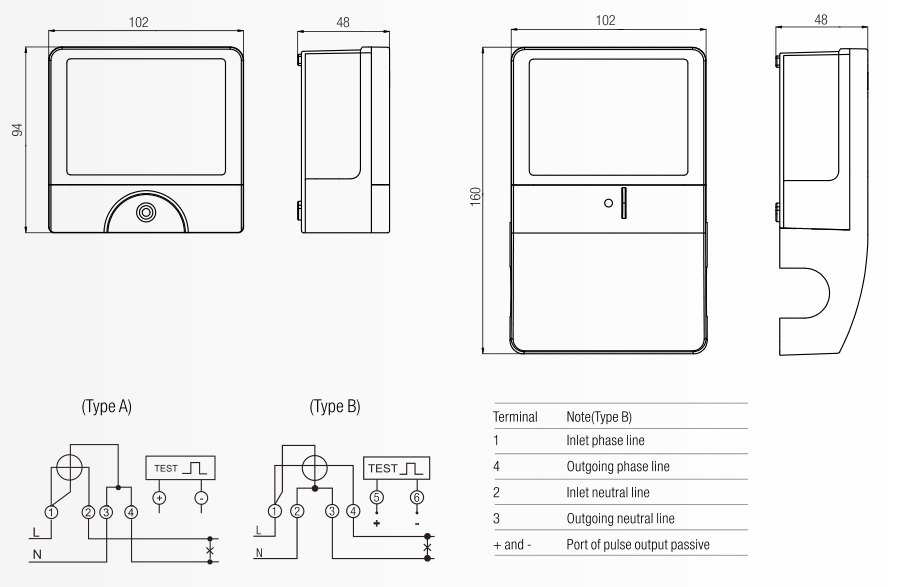

Dimension And Wiring Digram of Customize Single Phase Energy Meter With Optical
