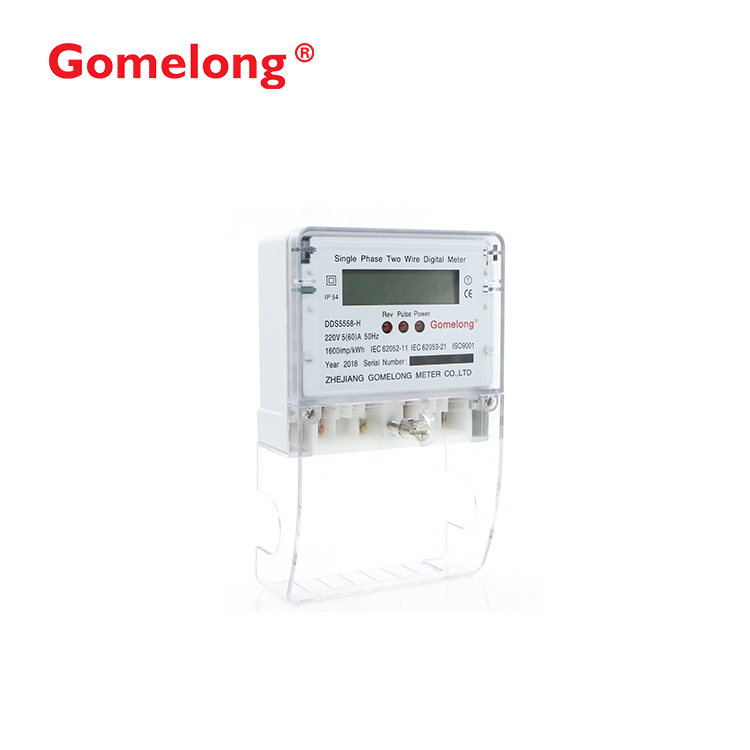

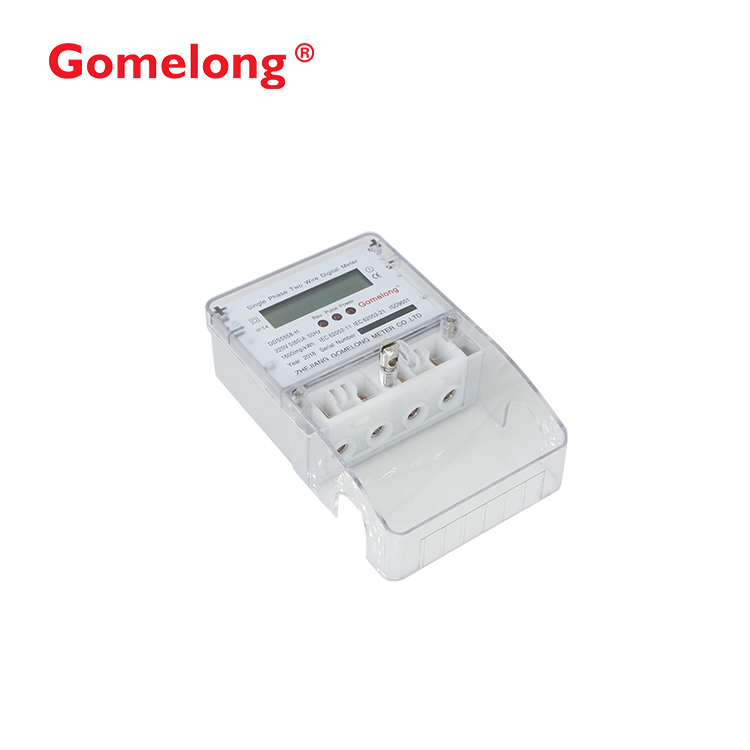

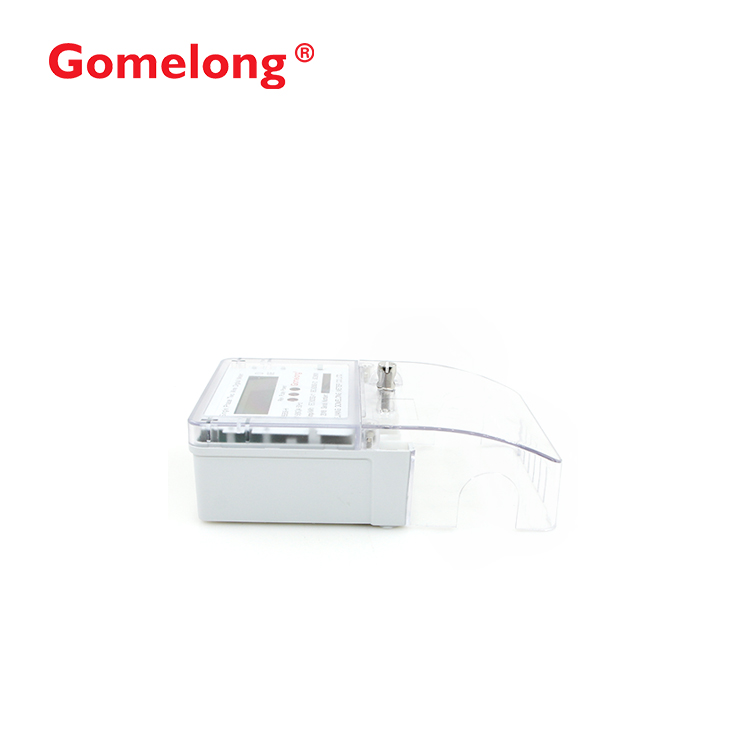

Gomelong is a professional manufactures of Single phase long terminal cover meter energy meter.Our professional expertise in manufacturing Single phase long terminal cover meter energy meter has been honed over the past 10+ years. Single phase long terminal cover meter energy meter has Bidirectional measurement, reverse energy calculated into forward.Single phase long terminal cover meter energy meter is a kind of new style single phase two wire active energy meter, adopts micro-electronics technique, and imported large scale integrate circuit.
Application of Single Phase Long Terminal Cover Meter Energy Meter
Single phase long terminal cover meter energy meter is a kind of new style single phase two wire active energy meter, adopts micro-electronics technique, and imported large scale integrate circuit, uses advanced technique of digital and SMT techniques, etc. Single phase long terminal cover meter energy meter completely accords with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC62053-21.
Features of Single Phase Long Terminal Cover Meter Energy Meter
1. Bidirectional measurement, Reverse energy calculated into forward
2. Indication: Pulse, power, reverse current
3.Full PC
Technical Parameters of Single Phase Long Terminal Cover Meter Energy Meter
|
Specification |
DDS5558 |
|
|
Accuracy |
Active |
Class1.0 |
|
Reactive |
|
|
|
Voltage |
Rated |
110/120/220/230/240V |
|
Range |
0.9Un~1.1Un |
|
|
Limit |
0.8Un~1.2Un |
|
|
Frequency |
|
50/60Hz |
|
Current |
Range |
5(20)A ,5(25)A ,5(30)A,5(32)A |
|
Starting Current |
|
0.4%Ib |
|
Constant |
Active |
2000imp/kWh |
|
Reactive |
\ |
|
|
Display |
Type |
LCD |
|
Digit |
6+1 |
|
|
Power Consumption |
Voltage Circuit |
≤0.8W,10VA |
|
Current Circuit |
≤4VA |
|
|
Communication |
Interface |
\ |
|
Protocol |
|
|
|
Temperature |
Working Temperature |
-45℃~+55℃ |
|
Storage Temperature |
-40℃~+70℃ |
|
|
Humidity |
|
≤90% |
|
Protection |
|
IP54 |
Dimension And Wiring Digram of Single Phase Long Terminal Cover Meter Energy Meter
