Gomelong is a professional manufactures of Three phase digital voltage bidirectional meter. Our professional expertise in manufacturing Three phase digital voltage bidirectional meter has been honed over the past 10+ years. Three phase digital voltage bidirectional meters is a kind of new style three phase four wire multifunction energy meter.Three phase digital voltage bidirectional meters has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, etc.
Qucik Details of Three Phase Digital Voltage Bidirectional Meters

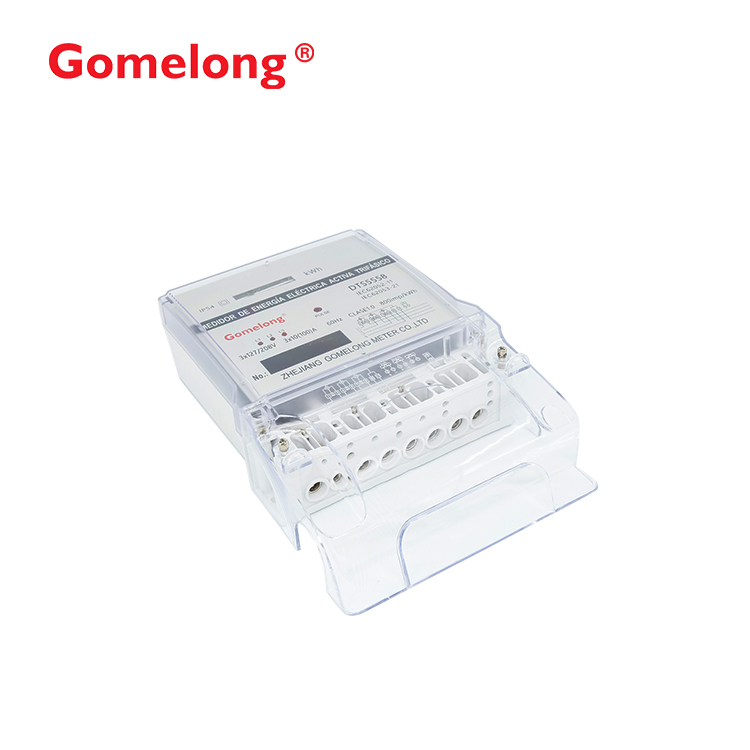

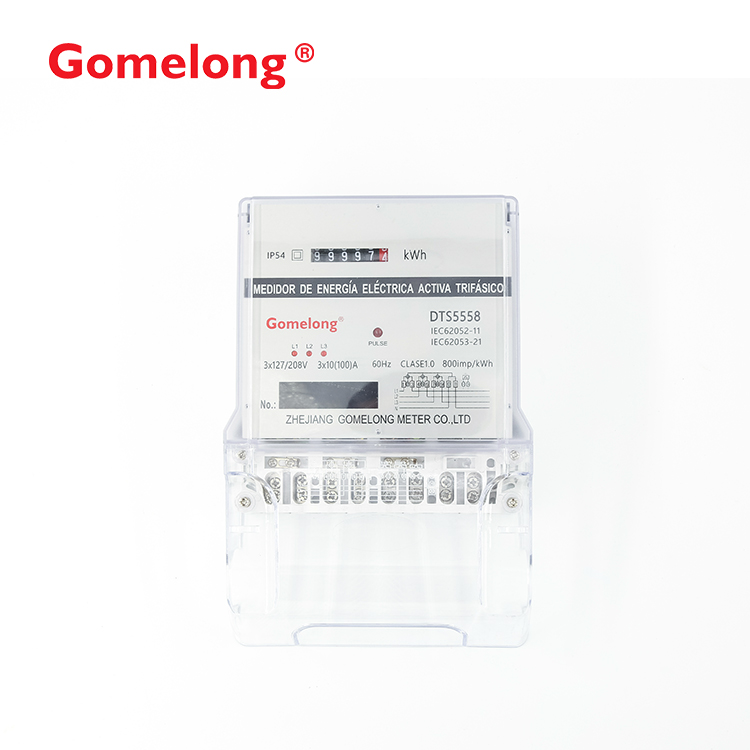

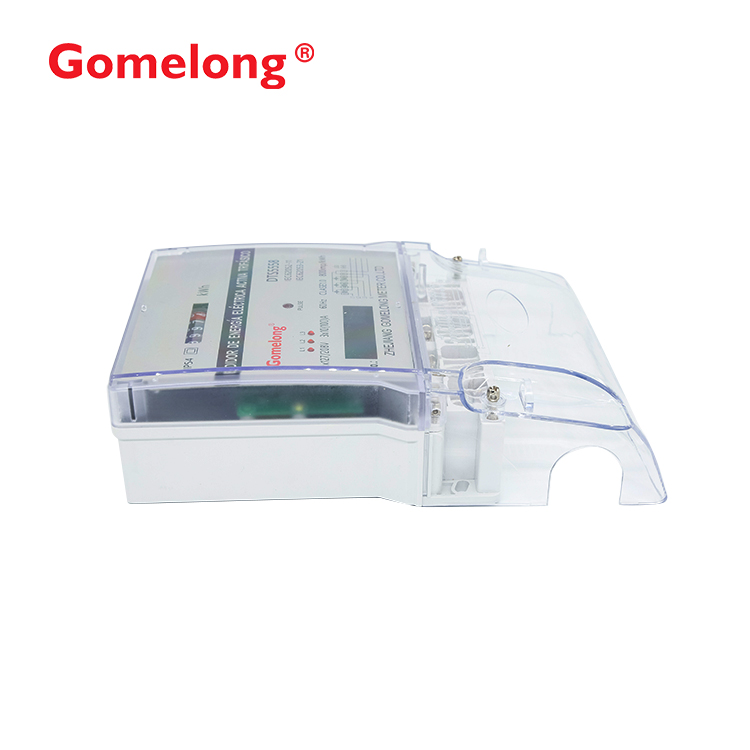

Three phase digital voltage bidirectional meters(Model DTSD5558 three phase four wire electronic multifunction energy meter ) is a kind of new style three phase four wire multifunction energy meter.The meter completely accord with relevant technical requirements of class 1 three phase active energy meter stipulated in international standard IEC 62053-21 and class1 three phase reactive energy meter in international standard IEC 62053-23. Three phase digital voltage bidirectional meters can accurately and directly measure 50Hz or 60Hz active energy consumption from three phase four wire AC electricity net, This meter has LCD monitors shows the active energy power consumption, and there are far infrared and RS485 communication module in it. Three phase digital voltage bidirectional meters has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, etc.
Features of Three Phase Digital Voltage Bidirectional Meters
♦ Measurement of Import/Export active energy, current energy balance, Instant voltage/current/power
♦ PLC, Rs485, Infrared interface
♦ Event record: Cover open detection, Reverse current, Fraud
Technical Parameters of Three Phase Digital Voltage Bidirectional Meters
|
Specification |
DTS5558L |
DTS5558 |
|
|
Accuracy |
Active |
Class1.0 |
Class1.0 |
|
Reactive |
Optional |
Optional |
|
|
Voltage |
Rated |
3x57.7/100V,3x220/380V 3x230/400V,3x240/415V |
3x57.7/100V,3x220/380V 3x230/400V,3x240/415V |
|
Range |
0.9Un~1.1Un |
0.9Un~1.1Un |
|
|
Limit |
0.8Un~1.2Un |
0.8Un~1.2Un |
|
|
Frequency |
|
50/60Hz |
50/60Hz |
|
Current |
Range |
1.5(6), 5(30), 10(50), 15(90), 20(100), 5(40), 5(100)A |
3x1.5(6), 3x 5(30), 3x 10(50), 3x 15(90), 3x 20(100), 3x 5(40), 3x 5(100)A |
|
Starting Current |
|
0.4%Ib |
0.4%Ib |
|
Constant |
Active |
1600imp/kWh |
1600imp/kWh |
|
Reactive |
\ |
\ |
|
|
Display |
Type |
LCD |
Register |
|
Digit |
6+1 |
6+1 |
|
|
Power Consumption |
Voltage Circuit |
≤0.8W,10VA |
≤0.8W,10VA |
|
Current Circuit |
≤4VA |
≤4VA |
|
|
Communication |
Interface |
Optical/Infrared/RS485 (Optional) |
Optical/Infrared/RS485 (Optional) |
|
Protocol |
MODBUS,DLT/645,IEC1107 |
MODBUS,DLT/645,IEC1107 |
|
|
Temperature |
Working Temperature |
-45℃~+55℃ |
-45℃~+55℃ |
|
Storage Temperature |
-40℃~+70℃ |
-40℃~+70℃ |
|
|
Humidity |
|
≤90% |
≤90% |
|
Protection |
|
IP54 |
IP54 |
