Gomelong is a professional manufactures of 4P Din rail enclose bidirectional energy meter. Our professional expertise in manufacturing 4P Din rail enclose bidirectional energy meter has been honed over the past 10+ years. 4P Din rail enclose bidirectional energy meter adopt the special chip of measurement ADE7755.4P Din rail enclose bidirectional energy meter use the latest oversea electric energy special integration circuit, greatly improved dynamic working range of Mete; to make the ability of actual overload up to over 10 times.
Application of 4P Din Rail Enclose Bidirectional Energy Meter

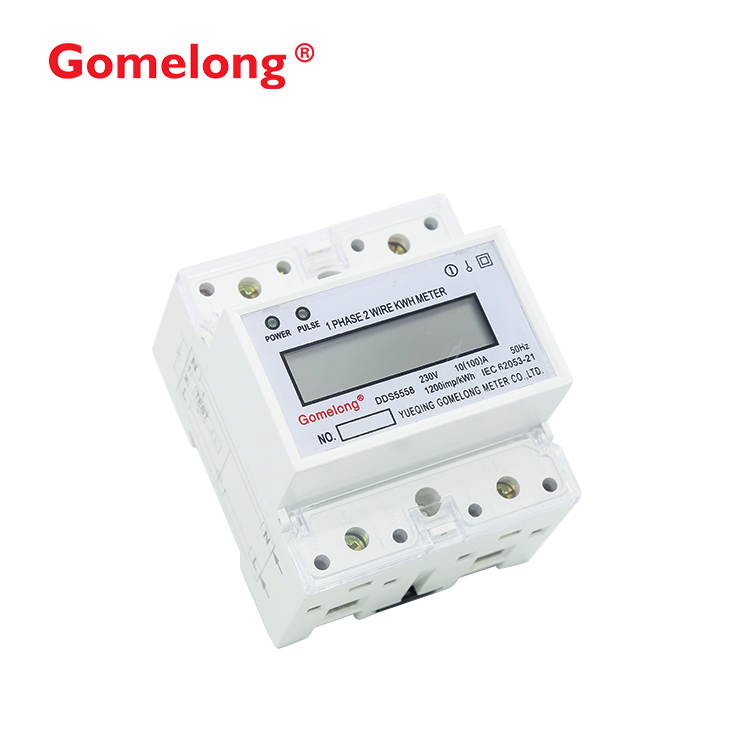

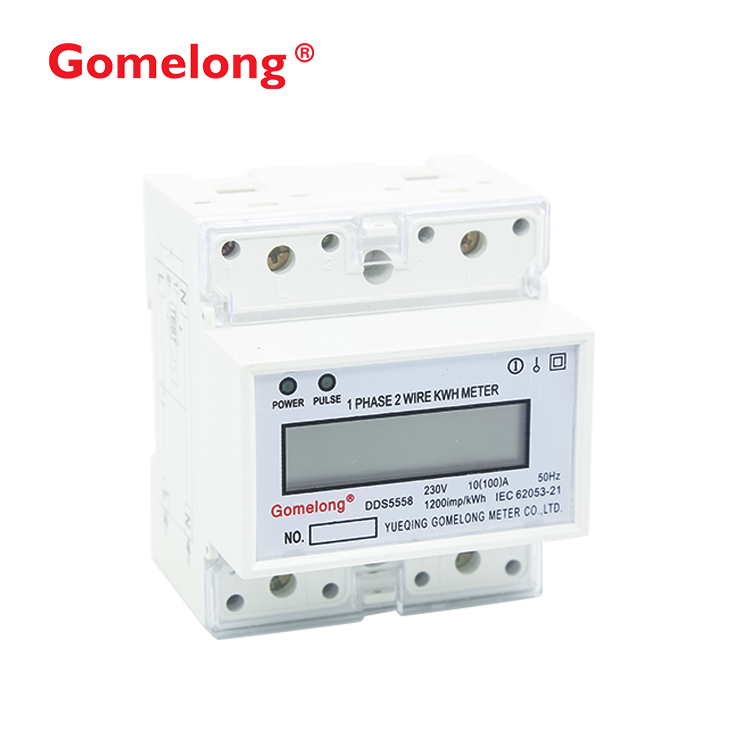

4P Din Rail Enclose Bidirectional Energy Meter is a kind of new style single phase two wire active energy meter.4P Din Rail Enclose Bidirectional Energy Meter adopts micro-electronics technique, and imported large scale integrate circuit, uses advanced technique of digital and SMT techniques, etc. 4P Din Rail Enclose Bidirectional Energy Meter completely accords with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC62053-21.

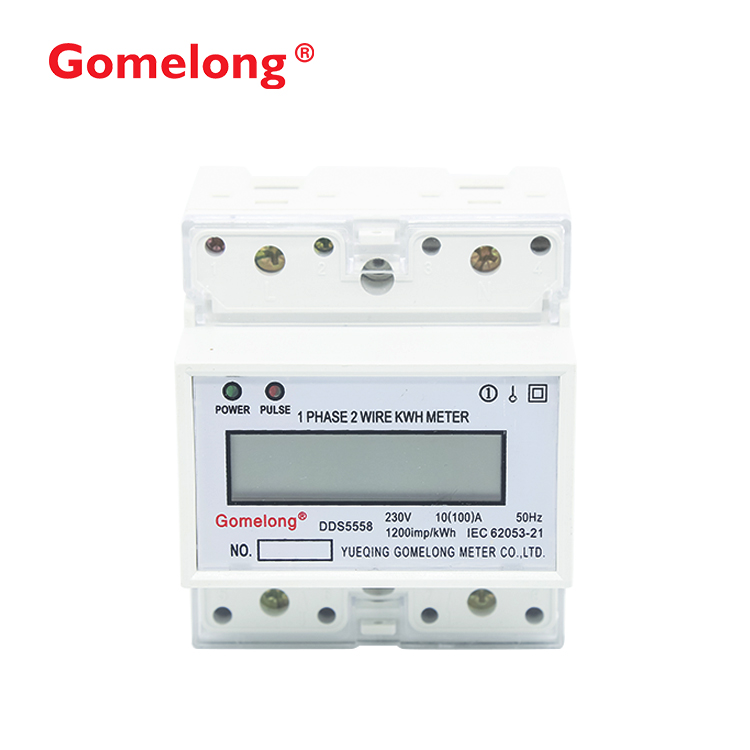

Features of 4P Din Rail Enclose Bidirectional Energy Meter
- Measure active electric energy, do not need calibrate for long-term operation;
- Adopt the special chip of measurement ADE7755;
- Adopt the latest oversea electric energy special integration circuit, greatly improved dynamic working range of Mete; to make the ability of actual overload up to over 10 times.
- Have good mistake linearity in the range of 5%Ib-lmax;
- Adopt high reliability and long life electronic components, so the Meter assume feature of high reliability and long life.

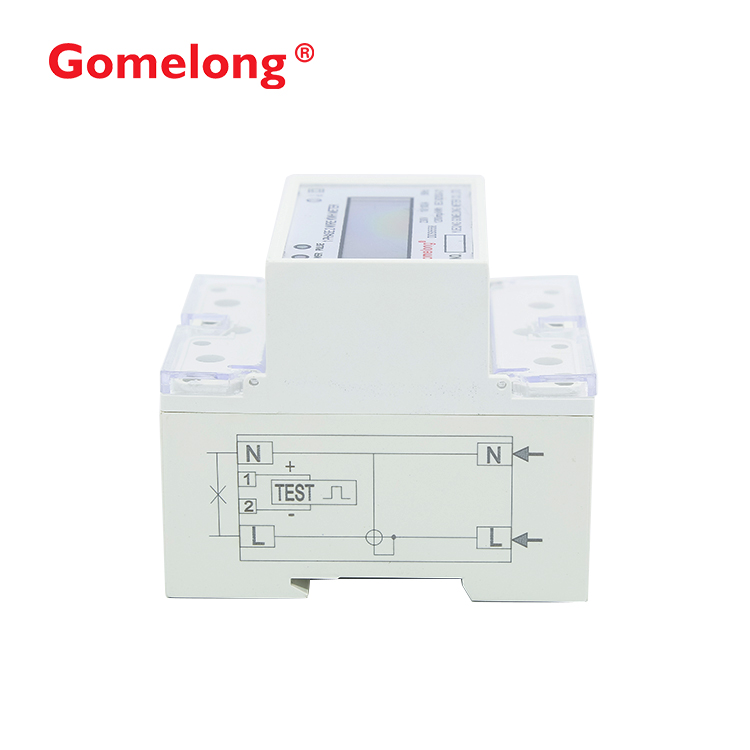

Technical Parameters of 4P Din Rail Enclose Bidirectional Energy Meter
|
Specification |
DDS5558 4P NEW DDS5558R |
||
|
Accuracy |
Active |
Class1.0 |
Class1.0 |
|
Reactive |
|
|
|
|
Voltage |
Rated |
110/120/220/230/240V |
110/120/220/230/240V |
|
Range |
0.9Un~1.1Un |
0.9Un~1.1Un |
|
|
Limit |
0.8Un~1.2Un |
0.8Un~1.2Un |
|
|
Frequency |
|
50/60Hz |
50/60Hz |
|
Current |
Range |
1.5(6), 5(30), 10(50), 15(90), 20(100), 5(40), 5(100)A |
1.5(6), 5(30), 10(50), 15(90), 20(100), 5(40), 5(100)A |
|
Starting Current |
|
0.4%Ib |
0.4%Ib |
|
Constant |
Active |
2000imp/kWh |
2000imp/kWh |
|
Reactive |
\ |
\ |
|
|
Display |
Type |
LCD |
Register |
|
Digit |
6+1 |
6+1 |
|
|
Power Consumption |
Voltage Circuit |
≤0.8W,10VA |
≤0.8W,10VA |
|
Current Circuit |
≤4VA |
≤4VA |
|
|
Communication |
Interface |
Optical/Infrared/RS485 (Optional) |
Optical/Infrared/RS485 (Optional) |
|
Protocol |
MODBUS,DLT/645,IEC1107 |
MODBUS,DLT/645,IEC1107 |
|
|
Temperature |
Working Temperature |
-45℃~+55℃ |
-45℃~+55℃ |
|
Storage Temperature |
-40℃~+70℃ |
-40℃~+70℃ |
|
|
Humidity |
|
≤90% |
≤90% |
|
Protection |
|
IP54 |
IP54 |
Voltage (V); Current (A); Frequency ( Hz ); Power (KW); Power factor (COS)
LCD blue screen back light ( Used in dark place )
Optional voltage: 110V 120V 60Hz
