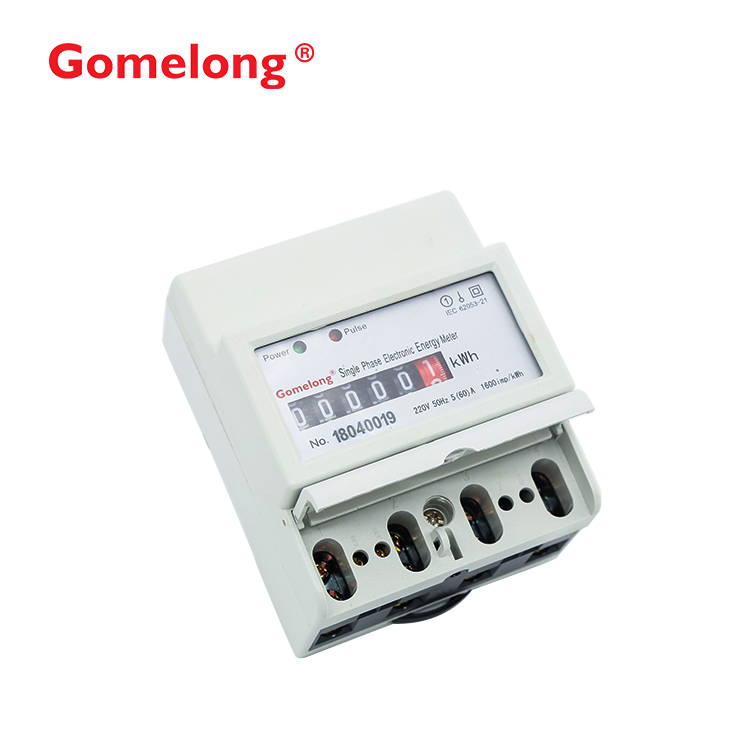

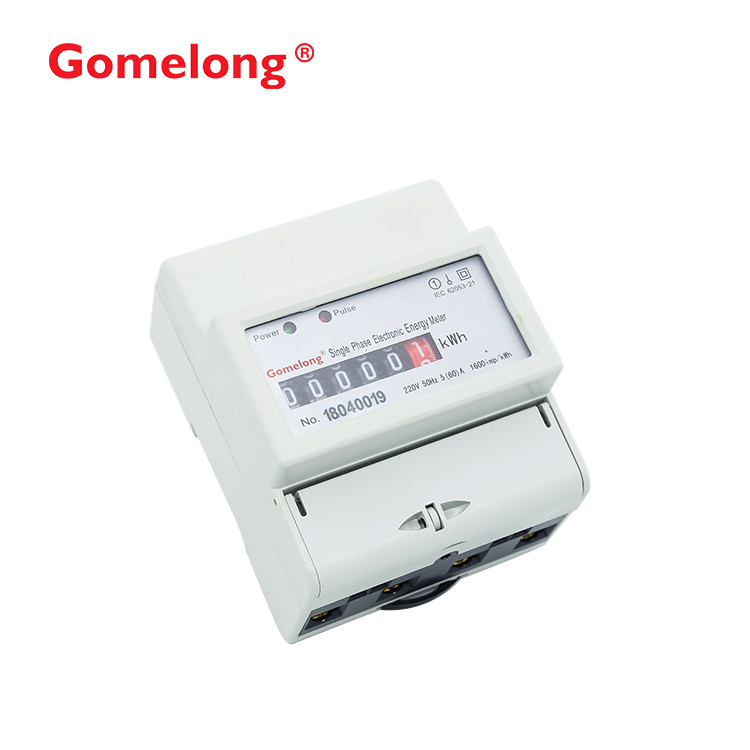

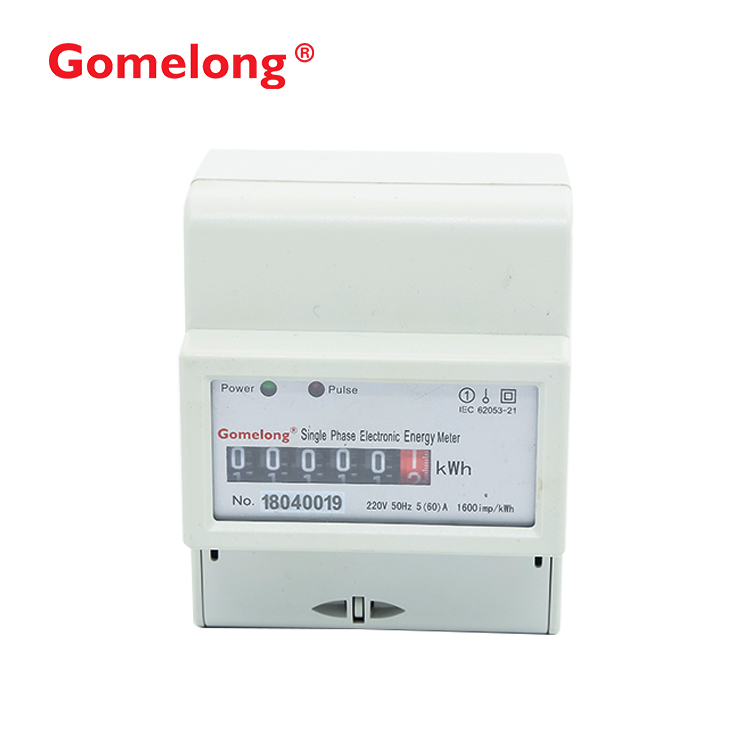

Gomelong is a professional manufactures of Single phase two wire din rail kwh meter. Our professional expertise in manufacturing Single phase two wire din rail kwh meter has been honed over the past 10+ years. Single phase two wire din rail kwh meter box completely accords with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC62053-21.
Application of Single Phase Two Wire Din Rail Kwh Meter Box
Single phase two wire din rail kwh meter box is a kind of new style single phase two wire active energy meter, sigle phase two wire din rail kwh meter box adopts micro-electronics technique, and imported large scale integrate circuit, uses advanced technique of digital and SMT techniques, etc. Single phase two wire din rail kwh meter box completely accords with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC62053-21.

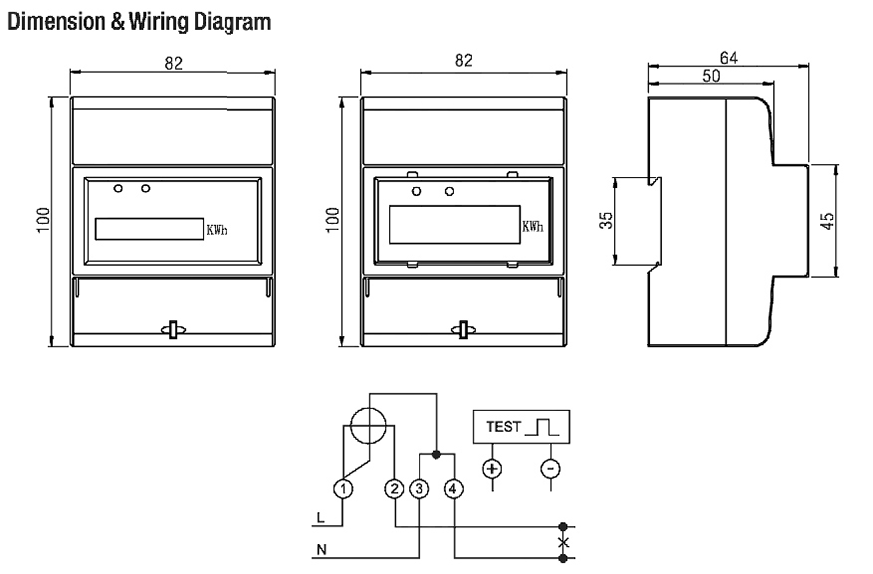

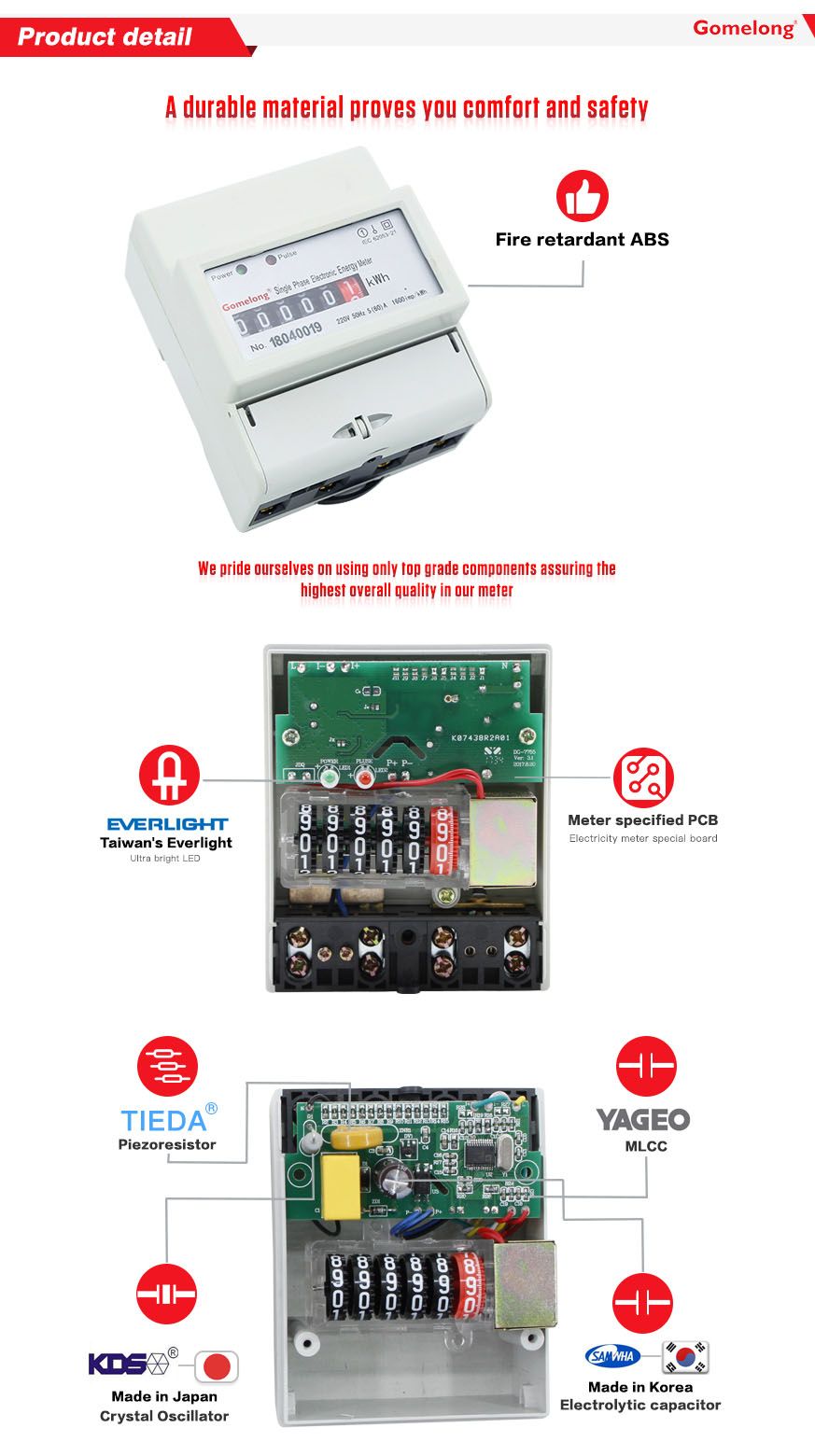

Features of Single Phase Two Wire Din Rail Kwh Meter Box
- Measure active electric energy, do not need calibrate for long-term operation;
- Adopt the special chip of measurement ADE7755;
- Adopt the latest oversea electric energy special integration circuit, greatly improved dynamic working range of Mete; to make the ability of actual overload up to over 10 times.
- Have good mistake linearity in the range of 5%Ib-lmax;
- Adopt high reliability and long life electronic components, so the Meter assume feature of high reliability and long life.
Technical Parameters of Single Phase Two Wire Din Rail Kwh Meter Box
|
Specification |
DDS5558 4P NEW |
||
|
Accuracy |
Active |
Class1.0 |
Class1.0 |
|
Reactive |
|
|
|
|
Voltage |
Rated |
110/120/220/230/240V |
110/120/220/230/240V |
|
Range |
0.9Un~1.1Un |
0.9Un~1.1Un |
|
|
Limit |
0.8Un~1.2Un |
0.8Un~1.2Un |
|
|
Frequency |
|
50/60Hz |
50/60Hz |
|
Current |
Range |
1.5(6), 5(30), 10(50), 15(90), 20(100), 5(40), 5(100)A |
1.5(6), 5(30), 10(50), 15(90), 20(100), 5(40), 5(100)A |
|
Starting Current |
|
0.4%Ib |
0.4%Ib |
|
Constant |
Active |
2000imp/kWh |
2000imp/kWh |
|
Reactive |
\ |
\ |
|
|
Display |
Type |
LCD |
Register |
|
Digit |
6+1 |
6+1 |
|
|
Power Consumption |
Voltage Circuit |
≤0.8W,10VA |
≤0.8W,10VA |
|
Current Circuit |
≤4VA |
≤4VA |
|
|
Communication |
Interface |
Optical/Infrared/RS485 (Optional) |
Optical/Infrared/RS485 (Optional) |
|
Protocol |
MODBUS,DLT/645,IEC1107 |
MODBUS,DLT/645,IEC1107 |
|
|
Temperature |
Working Temperature |
-45℃~+55℃ |
-45℃~+55℃ |
|
Storage Temperature |
-40℃~+70℃ |
-40℃~+70℃ |
|
|
Humidity |
|
≤90% |
≤90% |
|
Protection |
|
IP54 |
IP54 |
Optional voltage: 110V 120V 60Hz
