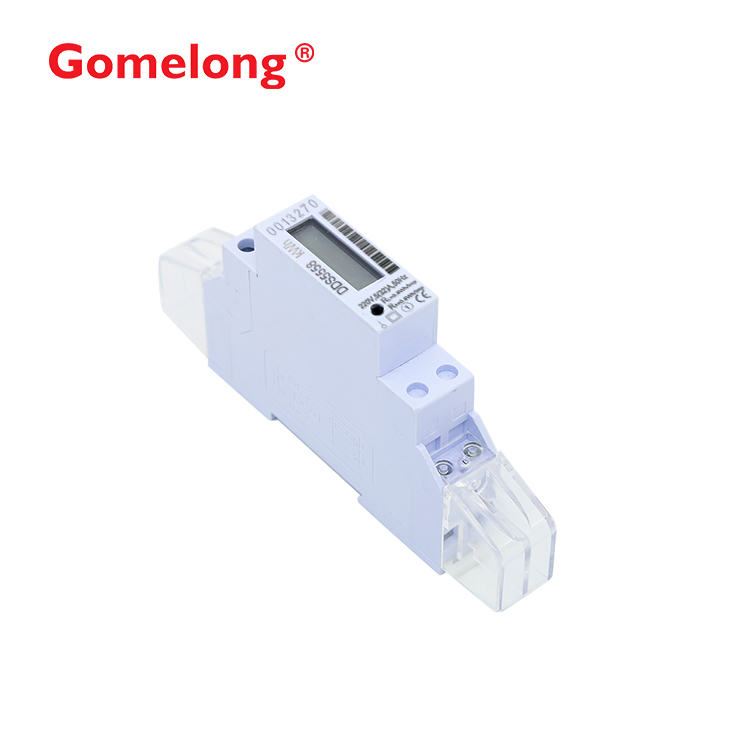

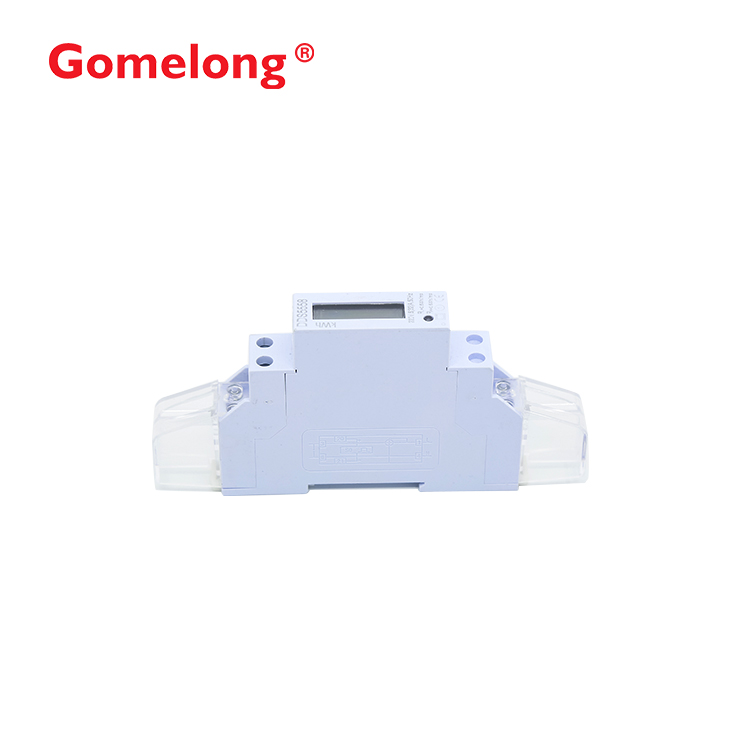

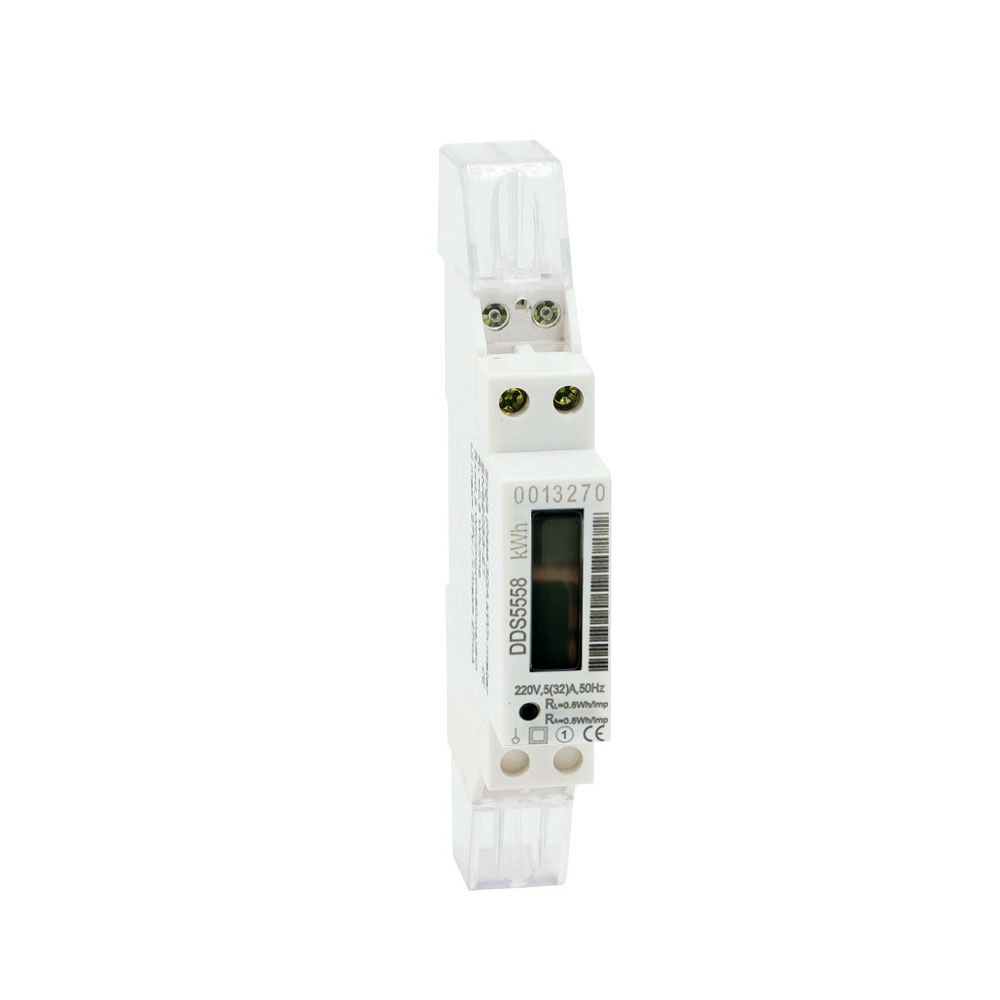

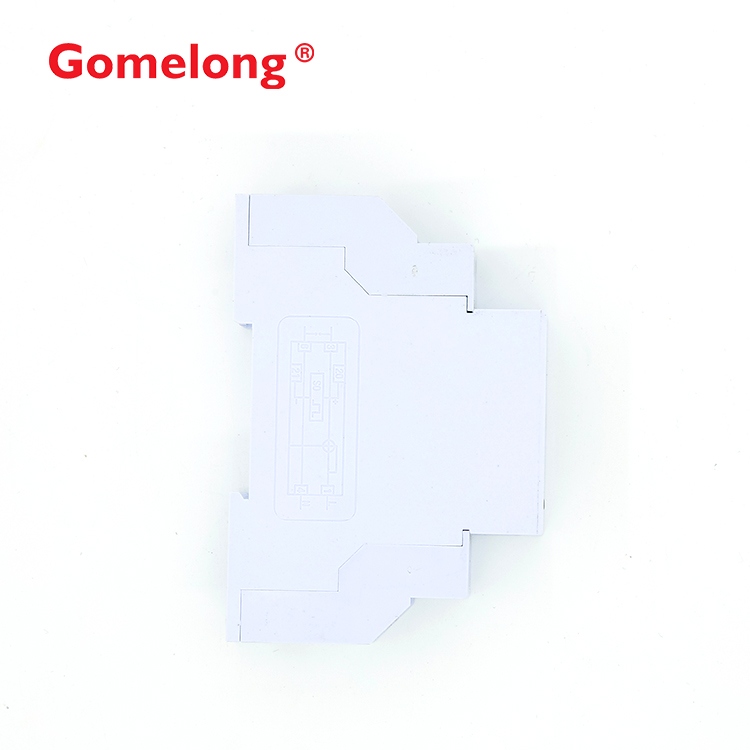

Gomelong is a professional manufactures of Mini din rail kwh super capacitor energy meter. Our professional expertise in manufacturing Mini din rail kwh super capacitor energy meter has been honed over the past 10+ years. Mini din rail kwh super capacitor energy meter has minimum size, and also a new single phase two wire active energy meter. Mini din rail kwh super capacitor energy meter has already passed the test of the international authority CE. Following features: Good reliability, small volume, light weight, specious nice appearance, convenient installation, etc.
Application of Mini Din Rail Kwh Super Capacitor Energy Meter
Mini din rail kwh super capacitor energy meter is a kind of new style single phase two wire active energy meter, adopts micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. Mini din rail kwh super capacitor energy meter has minimum size, and also a new single phase two wire active energy meter. Mini din rail kwh super capacitor energy meter has already passed the test of the international authority CE. Completely accords with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21. Mini din rail kwh super capacitor energy meter can accurately and directly measure 50Hz or 60Hz active eneray consumption from single phase AC electricity net. Mini din rail kwh super capacitor energy meter has white backlight source eight digits LCD monitors shows the active energy power consumption. Following features: Good reliability, small volume, light weight, specious nice appearance, convenient installation, etc.
Features of Mini Din Rail Kwh Super Capacitor Energy Meter
Bi-directional total active energy measurement
35mm standard DIN rail installation, complying with standard DIN En50022.
Single pole width (Modules17.5mm), complying with standard DIN43880.
Small modular size, DIN rail mounted.
Easy installation to distribution boards. load center, miniature & etc. By identifying where energy is being used.
Technical Data of Mini Din Rail Kwh Super Capacitor Energy Meter
|
Specification |
DDS5558-1P |
|
|
Accuracy |
Active |
Class1.0 |
|
Reactive |
|
|
|
Voltage |
Rated |
110/120/220/230/240V |
|
Range |
0.9Un~1.1Un |
|
|
Limit |
0.8Un~1.2Un |
|
|
Frequency |
|
50/60Hz |
|
Current |
Range |
5(20)A ,5(25)A ,5(30)A,5(32)A |
|
Starting Current |
|
0.4%Ib |
|
Constant |
Active |
2000imp/kWh |
|
Reactive |
\ |
|
|
Display |
Type |
LCD |
|
Digit |
6+1 |
|
|
Power Consumption |
Voltage Circuit |
≤0.8W,10VA |
|
Current Circuit |
≤4VA |
|
|
Communication |
Interface |
\ |
|
Protocol |
|
|
|
Temperature |
Working Temperature |
-45℃~+55℃ |
|
Storage Temperature |
-40℃~+70℃ |
|
|
Humidity |
|
≤90% |
|
Protection |
|
IP54 |
