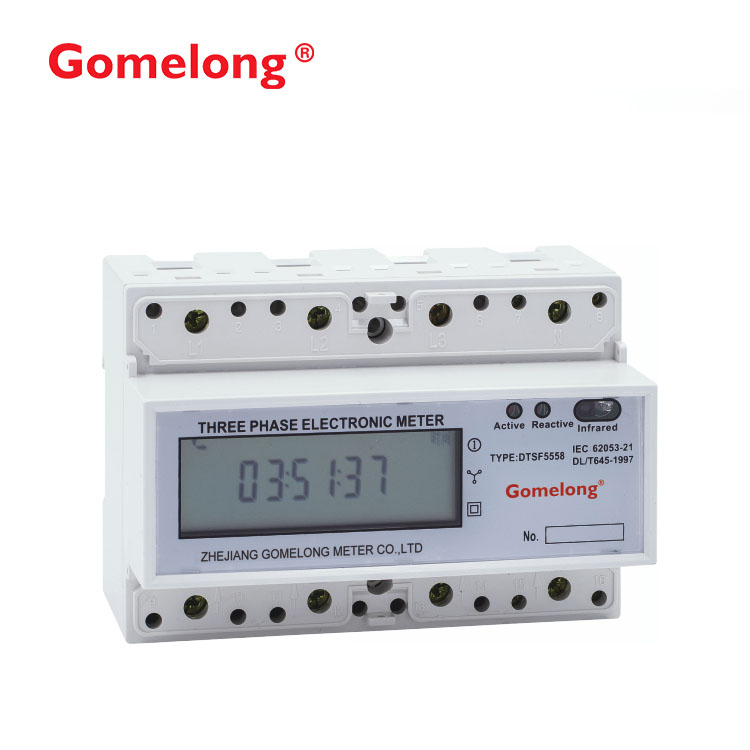

Gomelong is a professional manufactures of 3 Phase 230V remote watt meter. Our professional expertise in manufacturing 3 Phase 230V remote watt meter has been honed over the past 10+ years. 3 Phase 230V remote watt meter is easy installation to distribution boards, load center, miniature & etc. by identifying where energy is being used.3 Phase 230V remote watt meter can display total energy consumption by step and motor type impulse register.
Application of 3 Phase 230V Remote Watt Meter
3 Phase 230V remote watt meter is a kind of new style three phase four wire active energy meter. 3 Phase 230V remote watt meter adopts micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. 3 Phase 230V remote watt meter completely accords with relevant technica requirements of class 1 three phase active energy meter stipulated in international standard IEC 62053-21. Accurately and directly measure 50Hz or 60Hz active energy consumption from three phase four wire AC electricity net.3 Phase 230V remote watt meter can display total energy consumption by step and motor type impulse register.
Features of 3 Phase 230V Remote Watt Meter
Phase loss with 3 x LED display for L1,L2,L3
Pulse display with 2 x LED display for pulse & reverse
Reverse direction display with LED
Small modular size, DIN rail mounted.
Easy installation to distribution boards, load center, miniature & etc. by identifying where energy is being used.
|
Specification |
DDS5558 7P |
||
|
Accuracy |
Active |
Class1.0 |
Class1.0 |
|
Reactive |
Optional |
Optional |
|
|
Voltage |
Rated |
3x57.7/100V,3x220/380V |
3x57.7/100V,3x220/380V |
|
3x230/400V,3x240/415V |
3x230/400V,3x240/415V |
||
|
Range |
0.9Un~1.1Un |
0.9Un~1.1Un |
|
|
Limit |
0.8Un~1.2Un |
0.8Un~1.2Un |
|
|
Frequency |
|
50/60Hz |
50/60Hz |
|
Current |
Range |
3x1.5(6), 3x 5(30), 3x 10(50), |
3x1.5(6), 3x 5(30), 3x 10(50), |
|
3x 15(90), 3x 20(100), 3x 5(40), 3x 5(100)A |
3x 15(90), 3x 20(100), 3x 5(40), 3x 5(100)A |
||
|
Starting Current |
|
0.4%Ib |
0.4%Ib |
|
Constant |
Active |
1600imp/kWh |
1600imp/kWh |
|
Reactive |
\ |
\ |
|
|
Display |
Type |
LCD |
Register |
|
Digit |
6+1 |
6+1 |
|
|
Power Consumption |
Voltage Circuit |
≤0.8W,10VA |
≤0.8W,10VA |
|
Current Circuit |
≤4VA |
≤4VA |
|
|
Communication |
Interface |
Optical/Infrared/RS485 (Optional) |
Optical/Infrared/RS485 (Optional) |
|
Protocol |
MODBUS,DLT/645,IEC1107 |
MODBUS,DLT/645,IEC1107 |
|
|
Temperature |
Working Temperature |
-45℃~+55℃ |
-45℃~+55℃ |
|
Storage Temperature |
-40℃~+70℃ |
-40℃~+70℃ |
|
|
Humidity |
|
≤90% |
≤90% |
|
Protection |
|
IP54 |
IP54 |

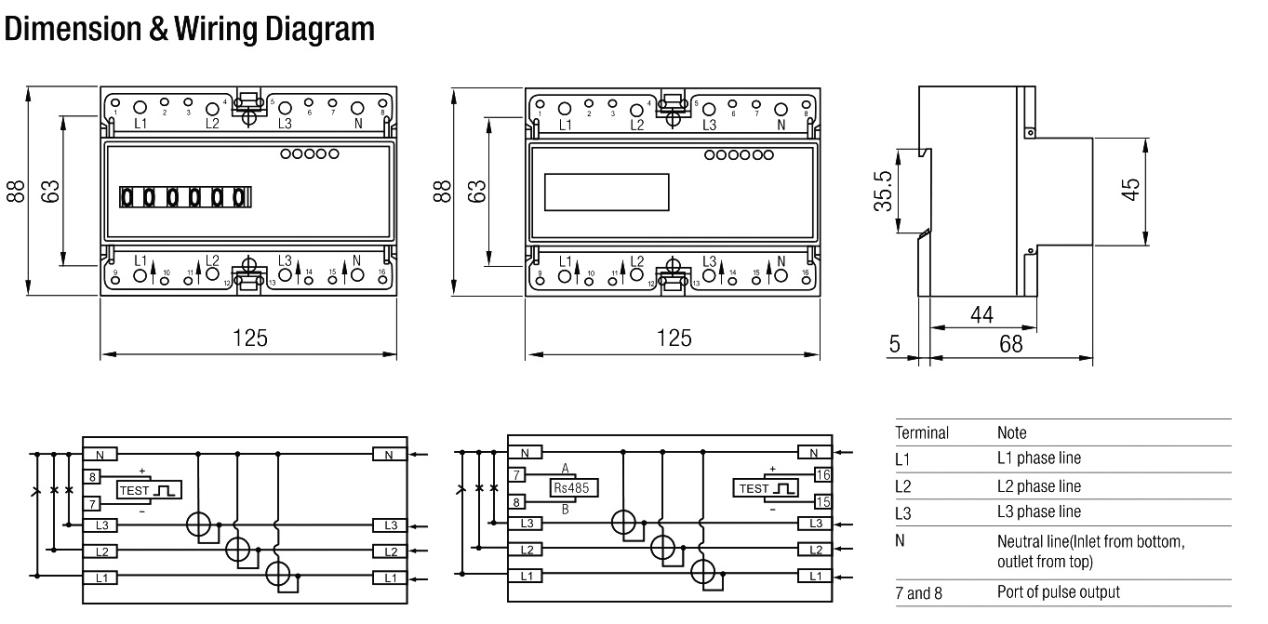

Dimension And Wiring Diagram of 3 Phase 230V Remote Watt Meter
